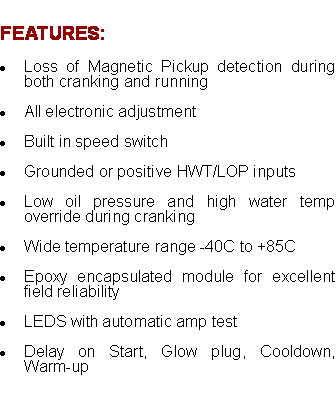

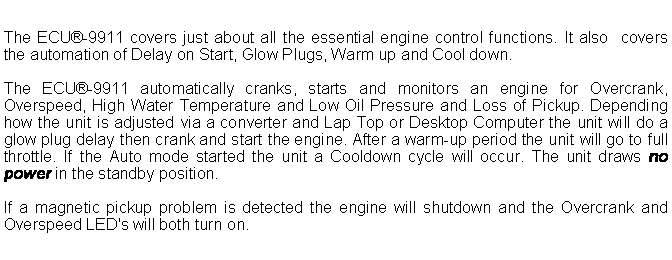

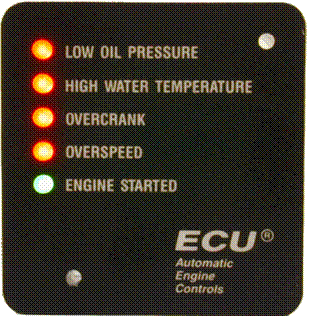

Text Box: Text Box: The ECUŽ-9911 engine control provides complete automation and safety monitoring of a gas or diesel engine. The ECUŽ-9911 controls the starter and fuel thus completely taking the operator out of the picture. Several functions are included such as Glow Plug, Cool Down and Warm Up. Text Box: ECUŽ-9911 Text Box: ONE VERSION FOR 12 AND 24 VDC Text Box: APPLICATIONS: Generator Control Panels, Automatic Engine Systems Text Box: FEATURES: Loss of Magnetic Pickup detection during both cranking and running All electronic adjustment Built in speed switch Grounded or positive HWT/LOP inputs Low oil pressure and high water temp override during cranking Wide temperature range -40C to +85C Epoxy encapsulated module for excellent field reliability LEDS with automatic amp test Delay on Start, Glow plug, Cooldown, Warm-up Text Box: ECUŽ-9911 A COMPLETE AUTOMATIC ENGINE CONTROL Text Box: The ECUŽ-9911 covers just about all the essential engine control functions. It also covers the automation of Delay on Start, Glow Plugs, Warm up and Cool down. The ECUŽ-9911 automatically cranks, starts and monitors an engine for Overcrank, Overspeed, High Water Temperature and Low Oil Pressure and Loss of Pickup. Depending how the unit is adjusted via a converter and Lap Top or Desktop Computer the unit will do a glow plug delay then crank and start the engine. After a warm-up period the unit will go to full throttle. If the Auto mode started the unit a Cooldown cycle will occur. The unit draws no power in the standby position. If a magnetic pickup problem is detected the engine will shutdown and the Overcrank and Overspeed LED's will both turn on. Text Box: Specifications Subject to Change Without Notice

ECUŽ IS A REGISTERED TRADEMARK OF

ENGINEERING CONCEPTS UNLIMITED, INC.

P.O. BOX 250 - 8950 TECHNOLOGY DRIVE - FISHERS, IN 46038

Voice: 317-849-8470 Fax: 317-849-6475 E-Mail: sales@ecu-engine-controls.com
Text Box: ECUŽ-9911 12/08/03 Text Box: AUTOMATIC ENGINE CONTROL FOR DIESEL/GAS ENGINES
